FEM/ISO Crane Hook Dimensions and Crane Hook Selection

Crane Hook Dimensions

Crane hooks are manufactured by hammer forging or drop forging. They can be produced either with a safety latch that prevents the load from slipping off the hook or without a safety latch. If there is a possibility that the load could slip from the hook when placed, the STN EN 13135 standard requires the hook to be equipped with a safety latch or to prevent slippage by another method.

Hook types according to DIN 15401 (single hooks) and DIN 15402 (ramshorn hooks) standards:

RS – drop forged (S),unmachined part (R),without nose
RSN – drop forged (S),unmachined part (R),with nose (N)
RF – forged (F),unmachined part (R),without nose
RFN – forged (F),unmachined part (R),with nose (N)

Selection of hook size according to load capacity; the table applies to both single and ramshorn type hooks.

Strength class	Drive group ISO / FEM										Strength class
M	...	...	...	...	M3/1 Bm	M4/1Am	M5/2m	M6/3m	M7/4m	M8/5m	M
P	...	...	...	M3/1 Bm	M4/1Am	M5/2m	M6/3m	M7/4m	...	...	P
S	...	...	M3/1 Bm	M4/1Am	M5/2m	M6/3m	M7/4m	...	...	...	S
T	...	M3/1 Bm	M4/1Am	M5/2m	M6/3m	M7/4m	...	...	...	...	T
V	M3/1 Bm	M4/1Am	M5/2m	M6/3m	M7/4m	...	...	...	...	...	V
Hook number	Lifting capacity, in kg										Hook number
006	320	250	200	160	125	100	...	...	...	...	006
010	500	400	320	250	200	160	125	100	...	...	010
012	630	500	400	320	250	200	160	125	100	...	012
020	1000	800	630	500	400	320	250	200	160	125	020
04	2000	1600	1250	1000	800	630	500	400	320	250	04
05	2500	2000	1600	1250	1000	800	630	500	400	320	05
08	4000	3200	2500	2000	1600	1250	1000	800	630	500	08
1	5000	4000	3200	2500	2000	1600	1250	1000	800	630	1
1.6	8000	6300	5000	4000	3200	2500	2000	1600	1250	1000	1.6
2.5	12500	10000	8000	6300	5000	4000	3200	2500	2000	1600	2.5
4	20000	16000	12500	10000	8000	6300	5000	4000	3200	2500	4
5	25000	20000	16000	12500	10000	8000	6300	5000	4000	3200	5
6	32000	25000	20000	16000	12500	10000	8000	6300	5000	4000	6
8	40000	32000	25000	20000	16000	12500	10000	80000	6300	5000	8
10	50000	40000	32000	25000	20000	16000	12500	10000	8000	6300	10
12	63000	50000	40000	32000	25000	20000	16000	12500	10000	8000	12
16	80000	63000	50000	40000	32000	25000	20000	16000	12500	10000	16
20	100000	80000	63000	50000	40000	32000	25000	20000	16000	12500	20
25	125000	100000	80000	63000	50000	40000	32000	25000	20000	16000	25
32	160000	12500	100000	80000	63000	50000	40000	32000	25000	20000	32
40	200000	160000	125000	100000	80000	63000	50000	40000	32000	25000	40
50	250000	200000	160000	125000	100000	80000	63000	50000	40000	32000	50
63	320000	250000	200000	160000	125000	100000	80000	63000	50000	40000	63
80	400000	320000	250000	200000	160000	125000	100000	80000	63000	50000	80
100	500000	400000	320000	25000	200000	160000	125000	100000	80000	63000	100
125	...	500000	400000	32000	250000	200000	160000	125000	100000	80000	125
160	...	...	500000	40000	32000	250000	200000	160000	125000	100000	160
200	...	...	...	50000	400000	320000	250000	200000	160000	125000	200
250	...	...	...	...	500000	400000	32000	250000	200000	160000	250

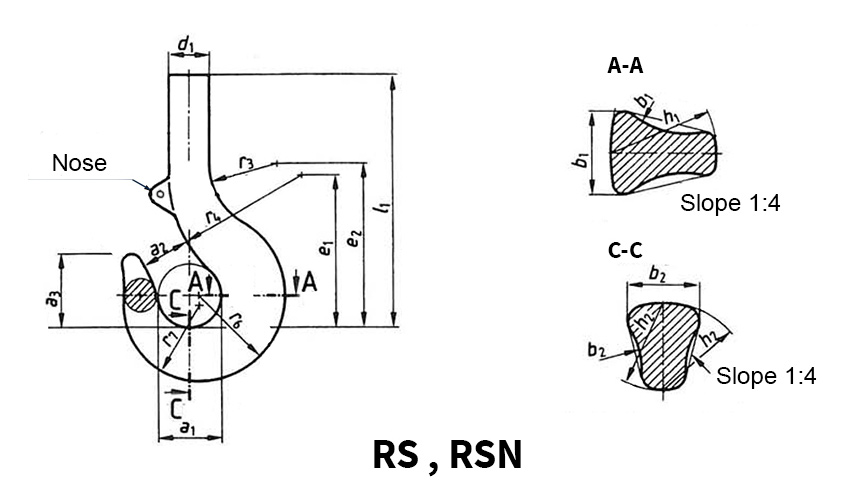

RS - RSN

Dimensions of type RSN single hooks

Dimensions of RSN type single hooks according to DIN 15401 (in mm)

Single hook No.	a1	a2	a3	b1	b2	d1	e1	e2	h1	h2	l1	r3	r4	r6	r7	weight (kg)
006	25	20	28	13	11	14	60	60	17	14	100	32	53	27	26	0,2
010	28	22	32	16	13	16	67	68	20	17	109	35	60	31	30	0,3
012	30	24	34,0	19	15	16	71	73	22	19	115	37	63	34	33	0,4
020	34	27	39	21	18	20	81	82	26	22	138	40	71	39	37	0,6
025	36	28	41	22	19	20	85	88	28	24	144	43	75	42	40	0,8
04	40	32	45	27	22	24	96	100	34	29	155	46	85	49	45	1,1
05	43	34	49	29	24	24	102	108	37	31	167	48	90	53	48	1,6
08	48	38	54	35	29	30	115	120	44	37	186	52	100	61	56	2,3
1	50	40	57	38	32	30	120	128	48	40	197	55	106	65	60	3,2
1.6	56	45	64	45	38	36	135	146	56	48	224	60	118	76	68	4,5
2.5	63	50	72	53	45	42	152	167	67	58	253	65	132	90	78	6,3
4	71	56	80	63	53	48	172	190	80	67	285	71	150	103	90	8,8
5	80	63	90	71	60	53	194	215	90	75	318	80	170	114	100	12,3
6	90	71	101	80	67	60	218	240	100	85	380	90	190	131	112	17,1
8	100	80	113	90	75	67	242	268	112	95	418	100	212	146	125	24
10	112	90	127	100	85	75	256	286	125	106	452	65	165	163	140	34
12	125	100	143	112	95	85	292	316	140	118	510	70	185	182	160	47
16	140	112	160	125	106	95	325	357	160	132	582	80	210	204,0	180	66
20	160	125	180	140	118	106	370	405	180	150	653	90	240	232	200	95
25	180	140	202	160	132	118	415	455	200	170	724	100	270	262	224	136
32	200	160	225	180	150	132	465	510	224	190	796	115	300	292	250	187
40	224	180	252	200	170	150	517	567	250	212	893	130	335	326	280	264

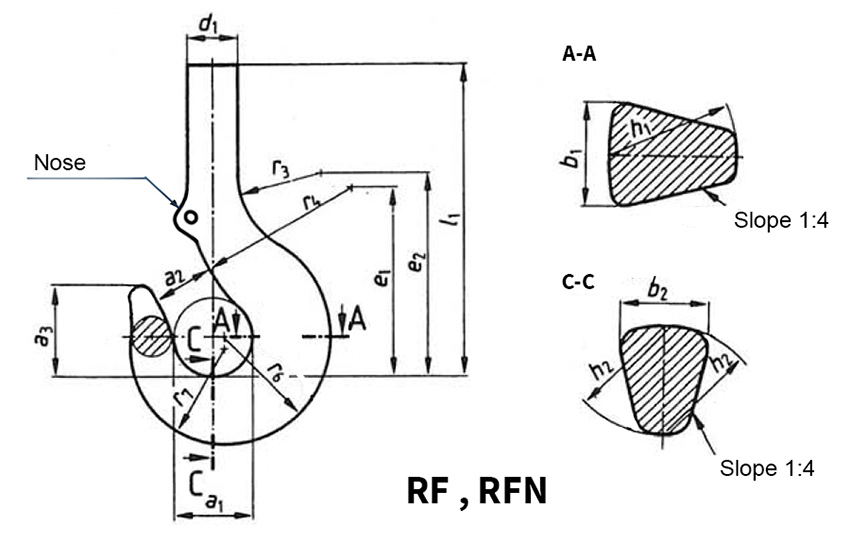

RF RFN

Dimensions of type RFN single hooks

Dimensions of RFN type single hooks (in mm),DIN 15401

Single hook No.	a1	a2	a3	b1	b2	d1	e1	e2	h1	h2	l1	r3	r4	r6	r7	Weight (kg)
10	112	90	127	100	85	75	256	286	125	106	460	65	165	163	140	40
12	125	100	143	112	95	85	292	316	140	118	525	70	185	182	160	55
16	140	112	160	125	106	95	325	357	160	132	595	80	210	204	180	77
20	160	125	180	140	118	106	370	405	180	150	665	90	240	232	200	112
25	180	140	202	160	132	118	415	455	200	170	735	100	270	262	224	160
32	200	160	225	180	150	132	465	510	224	190	810	115	300	292	250	220
40	224	180	252	200	170	150	517	567	250	212	905	130	335	326	280	310
50	250	200	285	224	190	170	575	635	280	236	990	150	370	363	315	430
63	280	224	320	250	212	190	655	710	315	265	1120	160	420	408	355	600
80	315	250	358	280	236	212	727	802	355	300	1270	180	470	460	400	860
100	355	280	402	315	265	236	827	902	400	335	1415	200	530	516	450	1220
125	400	315	450	355	300	265	920	1020	450	375	1590	230	600	579	500	1740
160	450	355	505	400	335	300	1035	1145	500	425	1790	250	675	654	560	2480
200	500	400	565	450	375	335	1150	1275	560	475	2048	285	750	729	630	3420
250	560	450	635	500	425	375	1280	1430	630	530	2305	320	840	815	710	4800

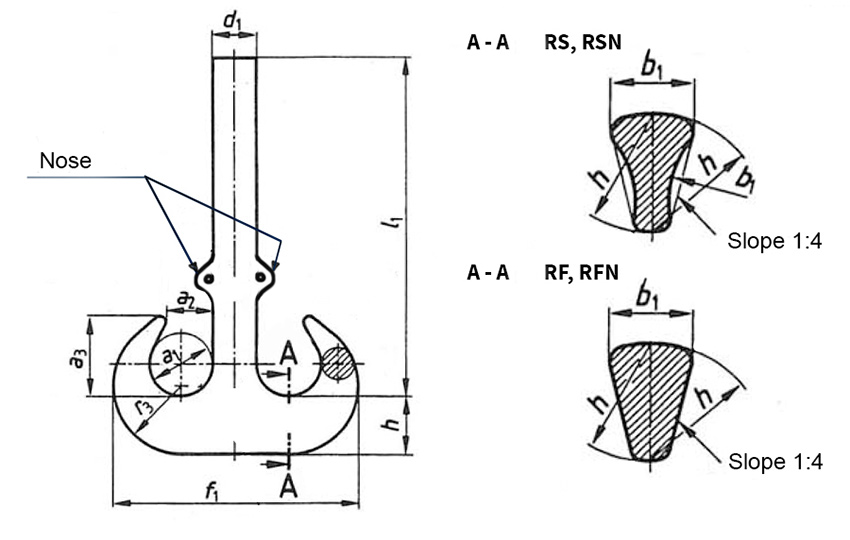

RS RSN RF and RFN

Dimensions of types RS, RSN, RF and RFN ramshorn hooks

Dimensions of RS, RSN, RF, and RFN type ramshorn hooks (in mm),DIN 15402

Rams-horn hook No.	a1	a2	a3	b1	d1	f1	h	l1	r3	Weight (kg) - RS	Weight (kg) - RSN	Weight (kg) - RF	Weight (kg) - RFN
05	34	27	44	22	24	130	27	165	36	1,8	1,9	-	-
08	38	30	49	26	30	150	33	183	41	2,5	2,6	-	-
1	40	32	52	28	30	158	36	195	44	3,5	3,8	-	-
1.6	45	36	59	34	36	183	43	222	51	5	5,3	-	-
2.5	50	40	65	40	42	208	50	250	58	6,5	6,9	-	-
4	56	45	73	48	48	238	60	280	67	9	9,7	-	-
5	63	50	82	53	53	266	67	312	75	12,5	13,4	-	-
6	71	56	92	60	60	301	75	375	85	15,5	16,8	-	-
8	80	63	103	67	67	337	85	415	95	24	25,3	-	-
10	90	71	116	75	75	377	95	450	106	34,3	35,5	35	36,3
12	100	80	130	85	85	421	106	510	118	48	49,5	49	50,5
16	112	90	146	95	95	471	118	580	132	67,6	69,7	69	71,1
20	125	100	163	106	106	531	132	650	150	95	97,5	97	99,5
25	140	112	182	118	118	598	150	715	170	132	135	135	138
32	160	125	205	132	132	672	170	790	190	189	193	193	197
40	180	140	230	150	150	754	190	885	212	274	280	280	286
50	200	160	260	170	170	842	212	965	236	-	-	388	394
63	224	180	292	190	190	944	236	1090	265	-	-	539	547
80	250	200	325	212	212	1062	265	1235	300	-	-	750	759
100	280	224	364	236	236	1186	300	1375	335	-	-	1050	1060
125	315	250	408	265	265	1330	335	1550	375	-	-	1480	1491
160	355	280	458	300	300	1505	375	1745	425	-	-	2100	2115
200	400	315	515	335	335	1685	425	1998	475	-	-	3000	3015
250	450	355	580	375	375	1885	475	2250	530	-	-	4250	4268

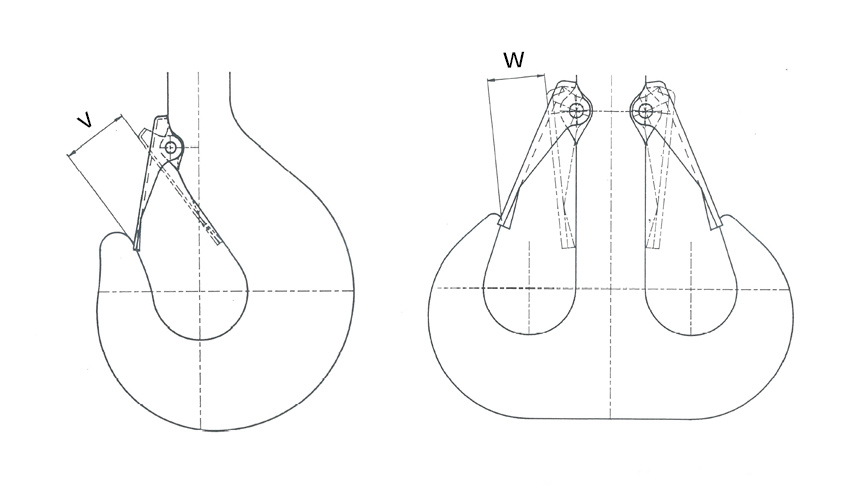

V W

Dimensions of safety device

Dimensions of safety device:

Note: The dimensions in the table are only informative.

Hook no.	v [mm]	w [mm]
0.5	28	–
0.8	34	–
1	34	–
1.6	40	–
2.5	41	30
4	49	31
5	55	38
6	59	48
8	69	47
10	76	57
12	84	60
16	97	63
20	110	73
25	132	87
32	137	108
40	167	112
50	188	130
63	205	–

Hook no.	v [mm]	w [mm]
0.5	28	–
0.8	34	–
1	34	–
1.6	40	–
2.5	41	30
4	49	31
5	55	38
6	59	48
8	69	47
10	76	57
12	84	60
16	97	63
20	110	73
25	132	87
32	137	108
40	167	112
50	188	130
63	205	–

Hook no.	v [mm]	w [mm]
0.5	28	–
0.8	34	–
1	34	–
1.6	40	–
2.5	41	30
4	49	31
5	55	38
6	59	48
8	69	47
10	76	57
12	84	60
16	97	63
20	110	73
25	132	87
32	137	108
40	167	112
50	188	130
63	205	–

Hook no.	v [mm]	w [mm]
0.5	28	–
0.8	34	–
1	34	–
1.6	40	–
2.5	41	30
4	49	31
5	55	38
6	59	48
8	69	47
10	76	57
12	84	60
16	97	63
20	110	73
25	132	87
32	137	108
40	167	112
50	188	130
63	205	–
